saving ELEC. Power - 30 iB4

4-station
Injection Blow
Molding Machine

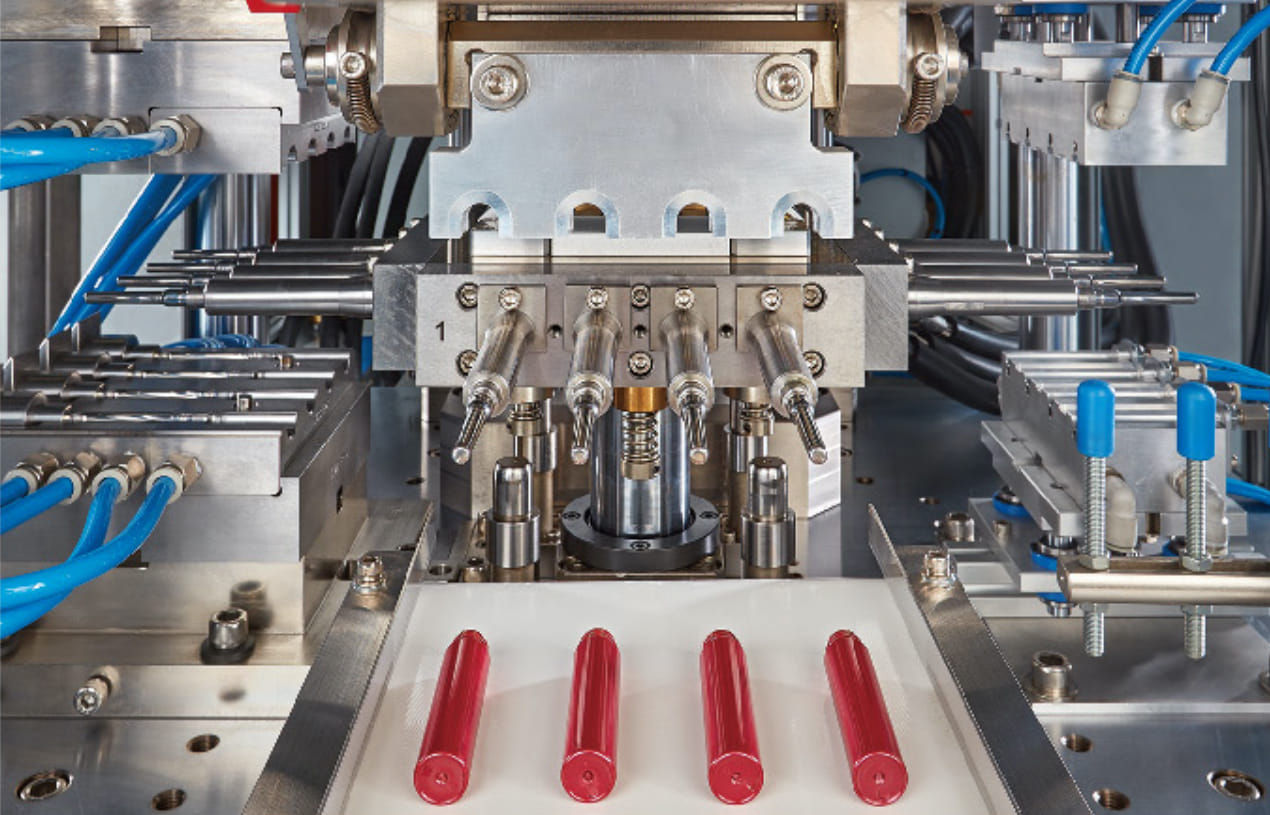

4-station Injection Blow Molding Machine
4-station Injection Blow Molding Machine

PROCESS

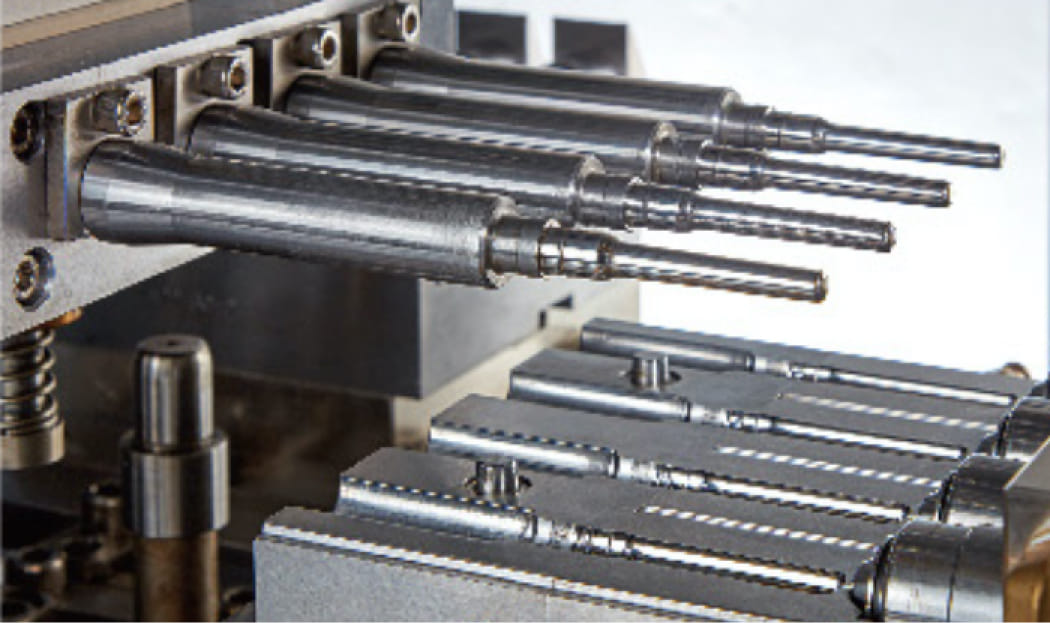

1 Station
The material is injected into the preform cavities by injector and forming a parison with precise neck section.

The material is injected into the preform cavities by injector and forming a parison with precise neck section.

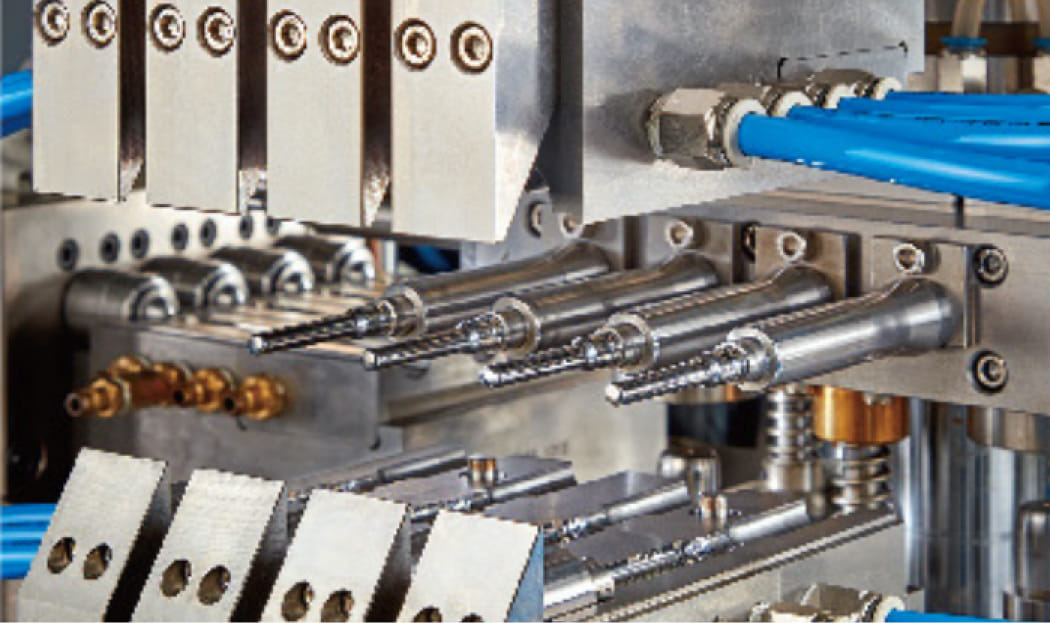

2 Station
The turntable transfers the parisons to this step, the blowing, by rotates 90 degrees. Here, the parisons are blowing to form a container.

The turntable transfers the parisons to this step, the blowing, by rotates 90 degrees. Here, the parisons are blowing to form a container.

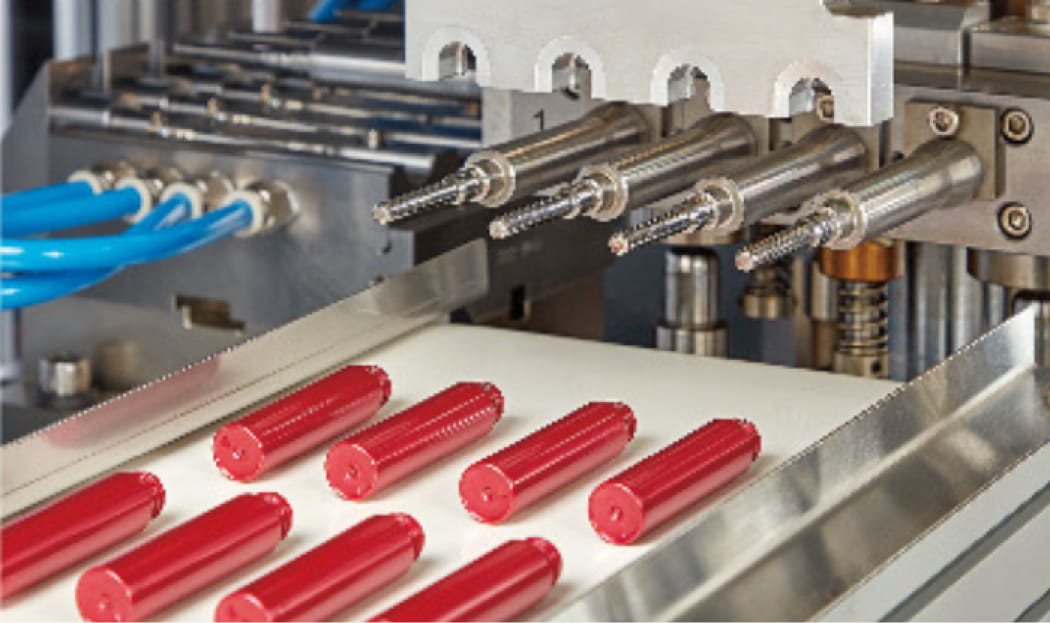

3 Station
The turntable rotates again and transfers the shaped bottle to this step, stripping. The finished bottles are stripped by stripper and ejector.

The turntable rotates again and transfers the shaped bottle to this step, stripping. The finished bottles are stripped by stripper and ejector.

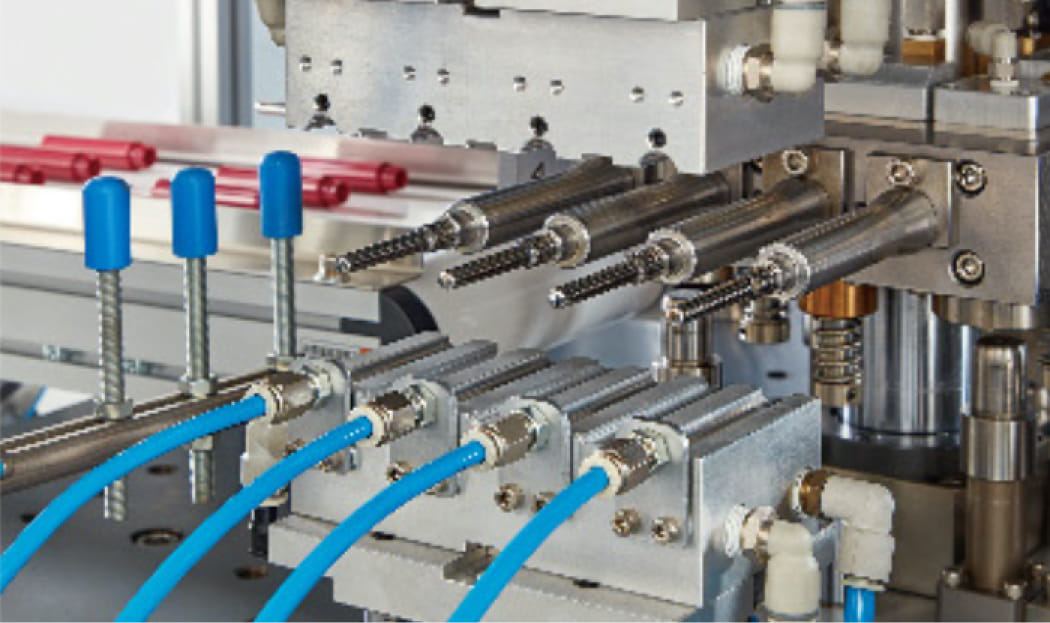

4 Station
To adjust temperature of core rods depending varied bottle in this station. After adjustment, the finished bottles can be more stable and precise.

To adjust temperature of core rods depending varied bottle in this station. After adjustment, the finished bottles can be more stable and precise.

FEATURE

Space-efficient

Space-efficient and modern design

Easy-to-learn

The user interface is easy-to-learn.

Energy Saving

Stable operation, energy saving and low noise.

Quick Mold Change

Quick mold change and diversified packaging solutions.

Material Saving

Automatic producing and material saving. No need the process of deflashing and trimming.

3-5 Steps

Holding pressure free programmable in 3 steps. And 5 steps for each of injection and plasticizing.

SPECIFICATION
  • Screw Diameter 30
    mm
  • Injection Volumn 95
    cm³/shot
  • Injection Stroke 135
    mm
  • Plasticizing Rate 6
    cm³/s
  • Screw L/D Ratio 22
  • Preform Clamp 200
    kN
  • Blow Mold Clamp 65
    kN
  • Press Stroke 130
    mm
  • Max. Die. Set 270x400
    mm
  • Trigger Bar 130
    mm
  • Dry Cycle Time 3
    sec
  • Oil Tank Capavity 65
    l
  • Low Compressed Air 6-10
    bar
  • High Compressed Air 20-40
    bar
  • Air Comsumption 300
    l/min
  • Power Supply 18
    kW

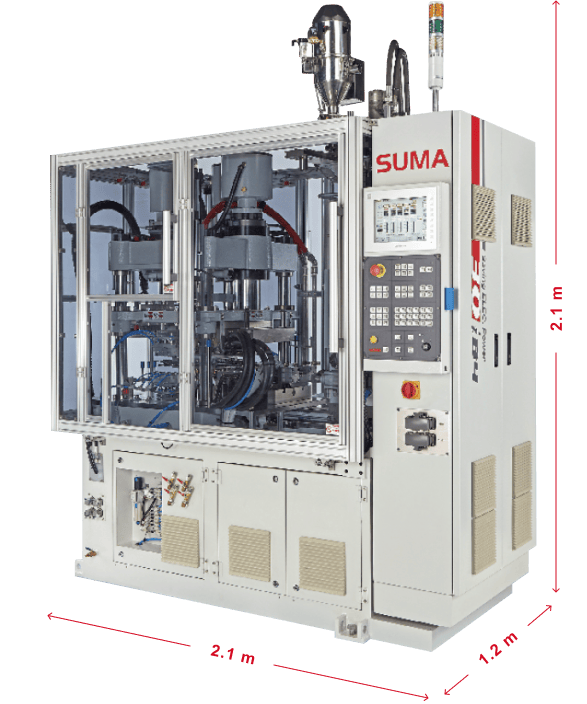

  • L x W x H 2.1x1.2x2.1
    m
  • Total Weight 3.5
    ton

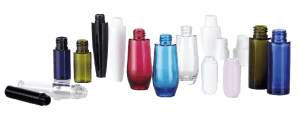

MOLDING
BOTTLES

Cosmetics

Pharmaceutical

Personal Care

APPLICATIONS

PRODUCT DIMENSIONS

Applications Product Dimensions
  • Cavity
    124
  • Center
    5038
    mm
  • Inside Neck Dia.
    6 - 50
    mm
  • Max. Body Dia.
    803525
    mm
  • Max. Height
    120120100
    mm
  • Max. Capacity
    1505015
    ml
